Illumination:

• Works with or without an AC ballast to convert new or existing fluorescent fixtures in to unobtrusive emergency lighting.

• Operates one or two lamps in the emergency mode for a minimum of 90-minutes.

• Provides a maximum initial lumen output of 3000 lumens.

Electrical:

Dual 120/277 voltage.

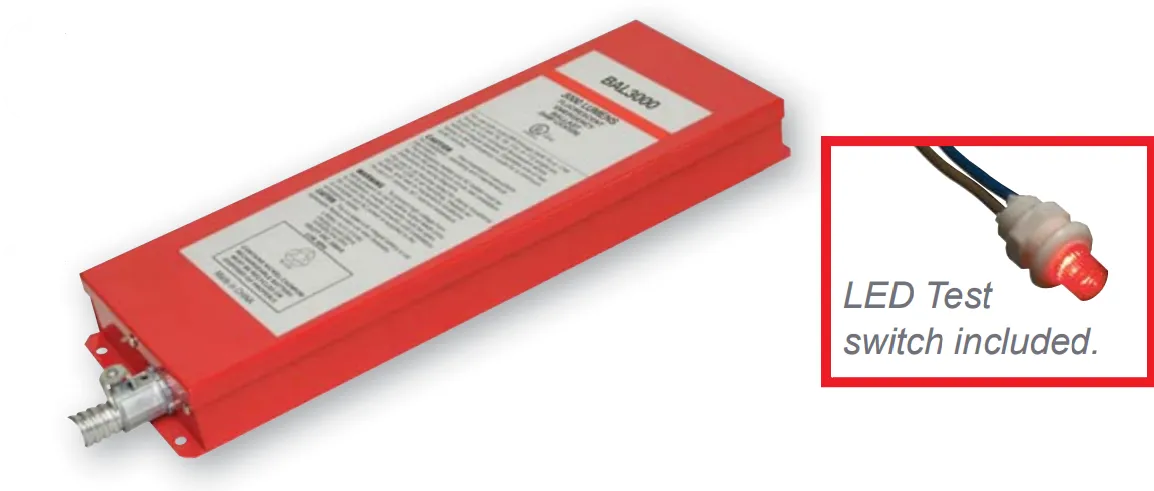

• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.

• 14.4V long life, maintenance-free, rechargeable sealed NiCd battery.

• Internal solid-state transfer switch automatically connects the internal battery to fluorescent lamp(s) for minimum 90-minute emergency illumination.

• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

• Time delay enhancement to overcome end-of-life circuit protection.

Mounting:

• Suitable for installation inside, on top or in remote* of the fixture.

• Can be used in both switched and unswitched fixtures.

• UL Listed for factory or field installation.

Housing:

• Durable painted steel construction in red finish.

• Provided with 2’ flex conduit.

Lamp Compatibility

• Compatible with most one-, two-, three-, and four-lamp electronic standard and dimming AC ballasts.

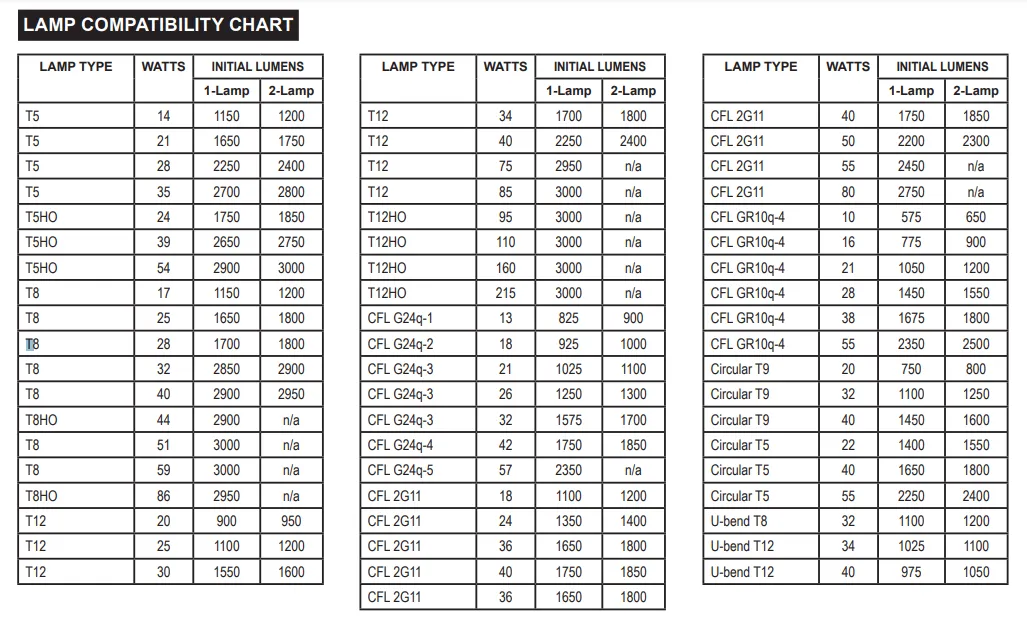

• Operates one or two T5, T5HO, T8, T12, T8HO, T12HO, Circular T5/T9, U-bend T8/T12, 4-Pin CFL and long CFL lamps in emergency mode. Refer to the chart on the next page for a complete list of compatible lamps.
